300mm HDPE Double Wall Corrugated Pipe Machine 90/80mm Extruder

  • 300mm HDPE Double Wall Corrugated Pipe Machine 90/80mm Extruder
  • 300mm HDPE Double Wall Corrugated Pipe Machine 90/80mm Extruder
  • 300mm HDPE Double Wall Corrugated Pipe Machine 90/80mm Extruder
  • 300mm HDPE Double Wall Corrugated Pipe Machine 90/80mm Extruder
  • 300mm HDPE Double Wall Corrugated Pipe Machine 90/80mm Extruder
Marca HUASU
Certificação CE,ISO,UL,QS,GMP
Model Number SBG
Minimum Order Quantity 1 Line
Preço USD10k-1000k
Packaging Details STANDARD Package
Delivery Time 90day
Payment Terms TT,LC
Supply Ability 100 Line

Contacte-me para amostras e cupons grátis.

Whatsapp:0086 18588475571

WeChat: 0086 18588475571

Skype: sales10@aixton.com

Se tiver alguma preocupação, fornecemos ajuda online 24 horas por dia.

x
Detalhes do produto
Vacuum Tank 6 METERS LENGTH Pipe type Drainage Pipe, Municipal Engineering, Underground Sewage Pipe, Electric Cable Conduit Pipe Production Line
Extruder Screw Diameter 90/80mm Power 380V/50Hz/3pH
Pipe Numbers SINGLE PIPE In Double Wall Corrugated Pipe Cutting Type Planetary Cutting
Product Type Plastic Corrugated Pipe With Double Wall Stacker Method Auto Weighing Stacker
Destacar

HDPE double wall corrugated pipe machine

,

300mm PVC pipe extruder

,

90/80mm corrugated pipe extruder
Deixe um recado
Descrição de produto

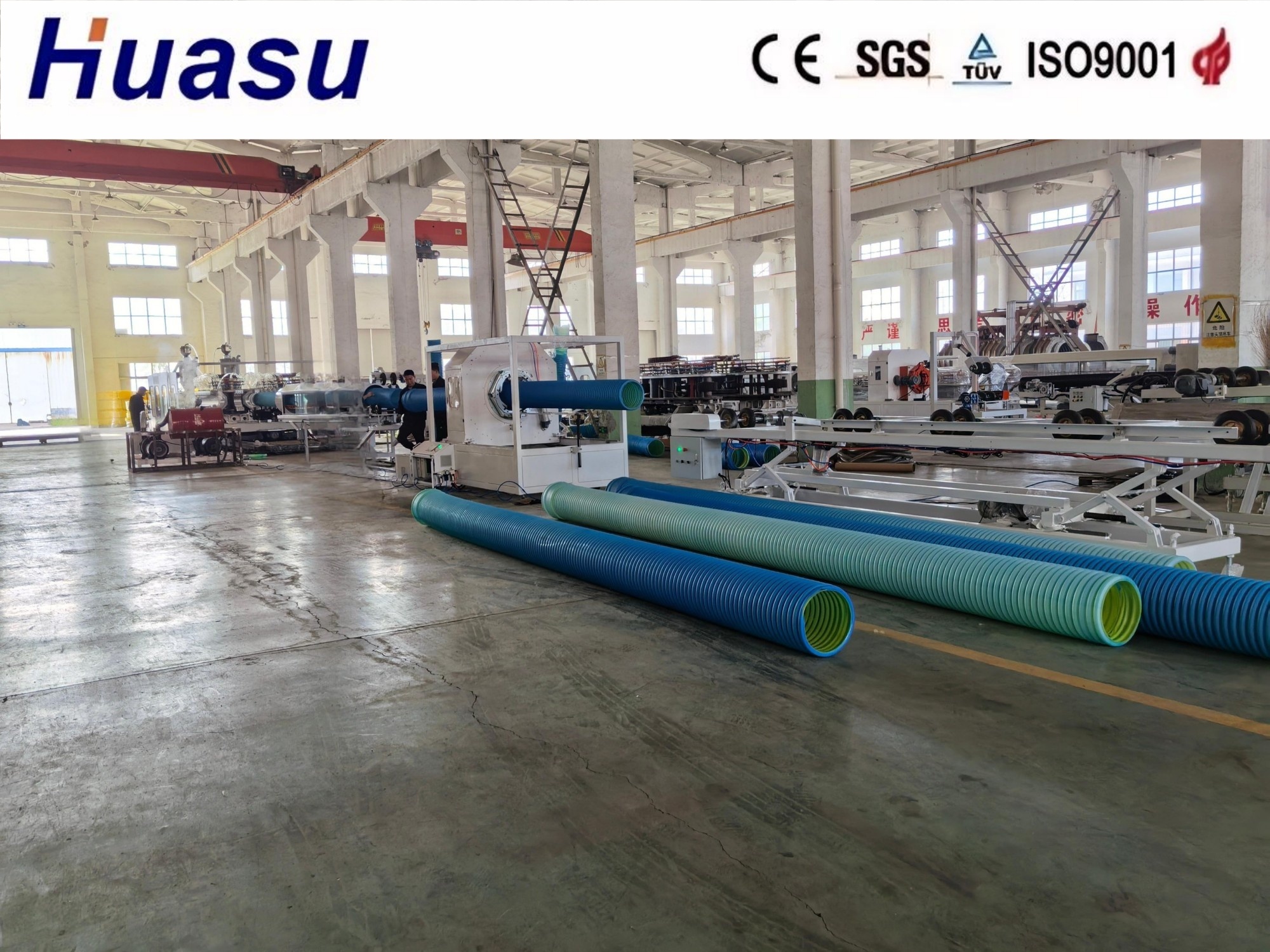

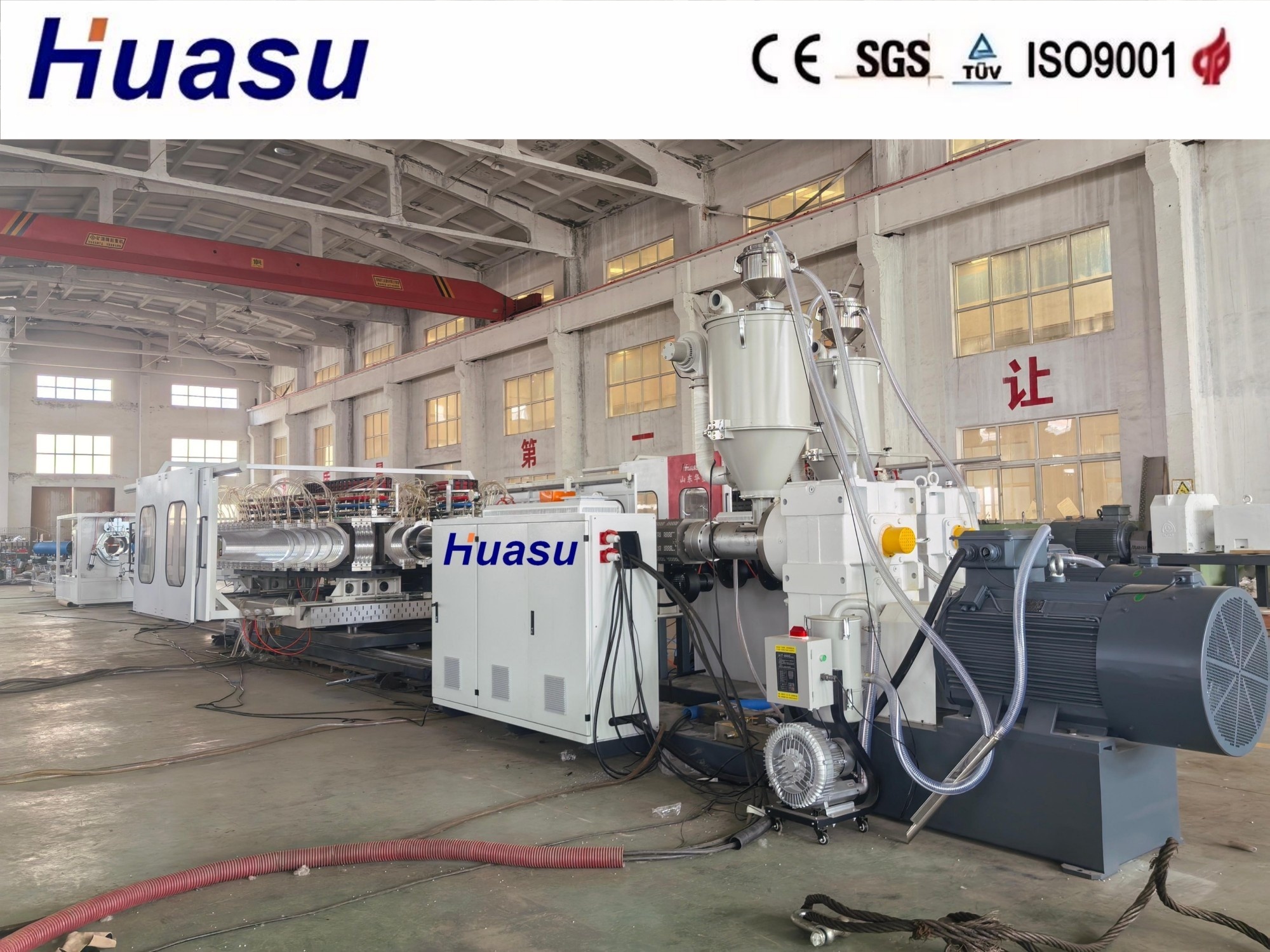

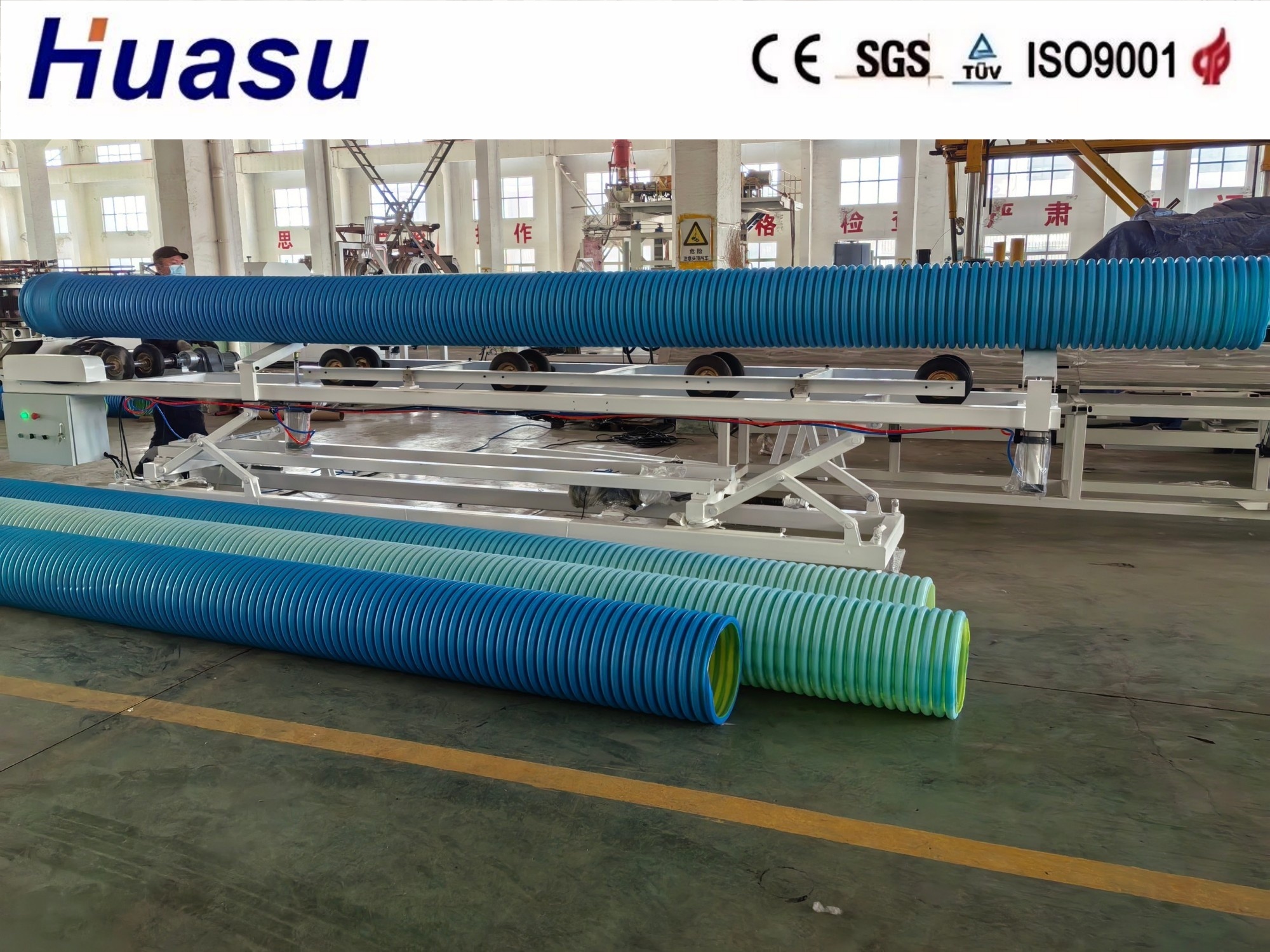

300mm HDPE Double Wall Corrugated Pipe Machine
Product Specifications
Attribute Value
Vacuum Tank 6 METERS LENGTH
Pipe type Drainage Pipe, Municipal Engineering, Underground Sewage Pipe, Electric Cable Conduit Pipe Production Line
Extruder Screw Diameter 90/80mm
Power 380V/50Hz/3pH
Pipe Numbers SINGLE PIPE In Double Wall Corrugated Pipe
Cutting Type Planetary Cutting
Product Type Plastic Corrugated Pipe With Double Wall
Stacker Method Auto Weighing Stacker
Product Overview

The double wall corrugated pipe line represents the third generation of the upgraded product created by Shandong HUASU. This latest version has seen significant improvements, with the extruder's output and the pipe's production speed being enhanced by 20-40% compared to the previous model. These advancements have made online belling more seamless, ensuring the premium quality and performance of the corrugated pipe products.

Additionally, the system incorporates Siemens PLC technology, well-known for its reliability and efficiency in industrial automation. The utilization of this technology ensures smooth operation and precise control over the entire production process, ultimately enhancing overall performance and productivity.

Key Features

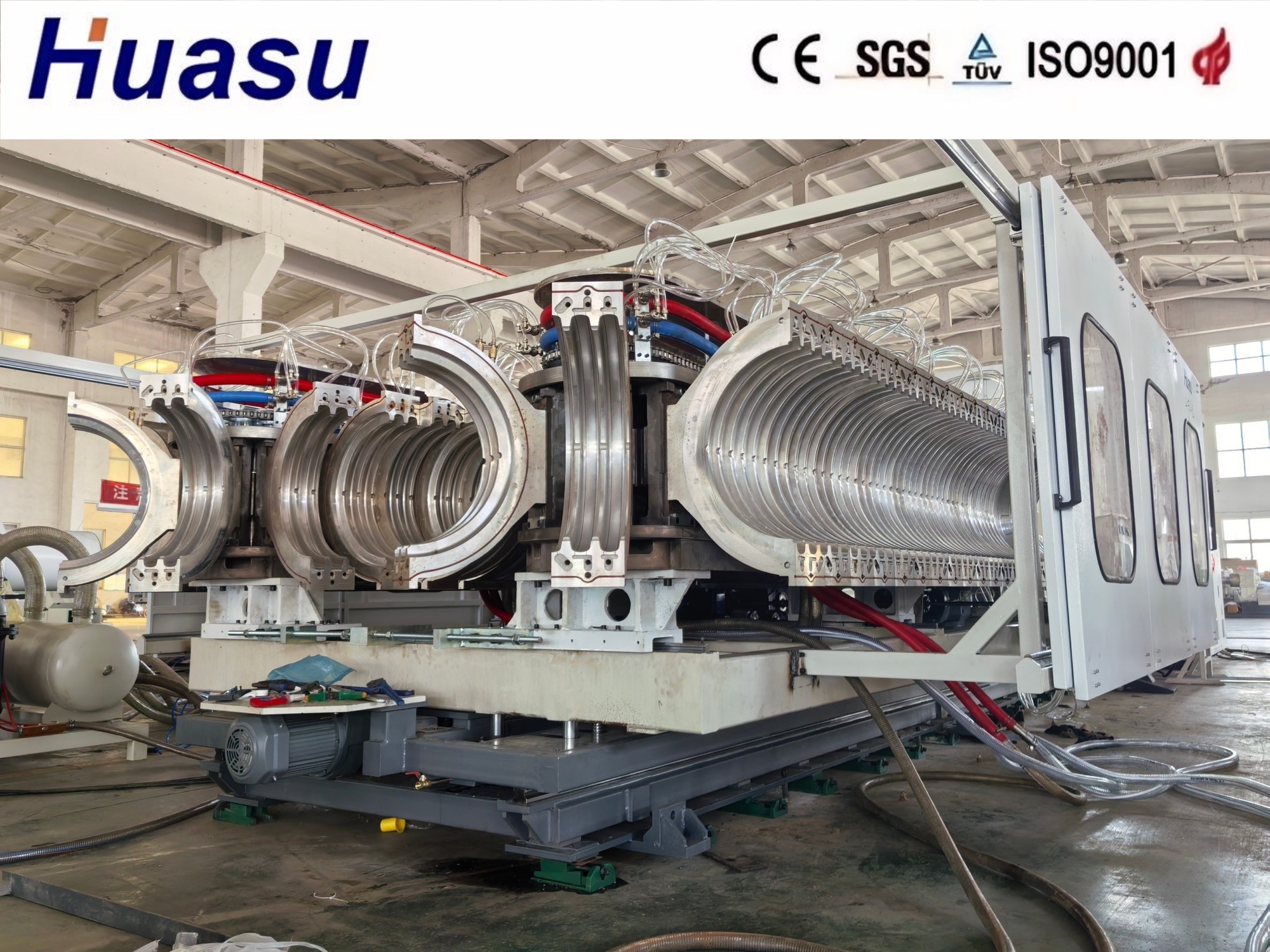

  • Pressure water-cooling for mould blocks significantly boosts production speed
  • Minimal energy consumption effectively decreases production expenses
  • Efficient vacuum system guarantees the creation of flawless pipes
  • Temperature control system for mould blocks optimizes pipe quality
  • Seamless and rapid changeover between different mould sizes
  • Complete extrusion line operates in a fully automated manner
  • Corrugators and extruders are synchronously controlled
  • Hardened treated screws and barrels provide extended lifespan
  • Remote service option available for added convenience
Technical Parameters
Motor Brand Siemens
Power 380V/50Hz/3pH
Control System PLC Control
Inverter Brand Siemens
Pipe Diameter Range 32-1600mm
Applications

Our Plastic Pipe Making Machine is engineered for producing plastic pipes used in a variety of applications, including:

  • Water supply systems
  • Drainage projects
  • Municipal engineering
  • Underground sewage systems
  • Electric cable conduit installations

The machine is designed to manufacture top-quality plastic pipes that conform to industry standards and specifications, available in various sizes and configurations to meet diverse requirements.
