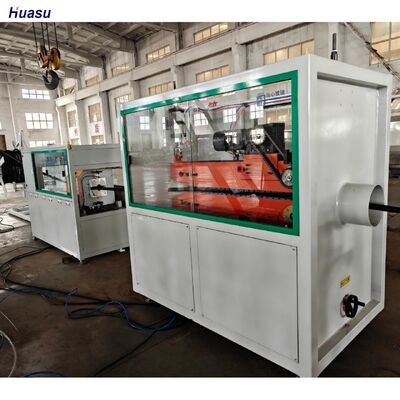

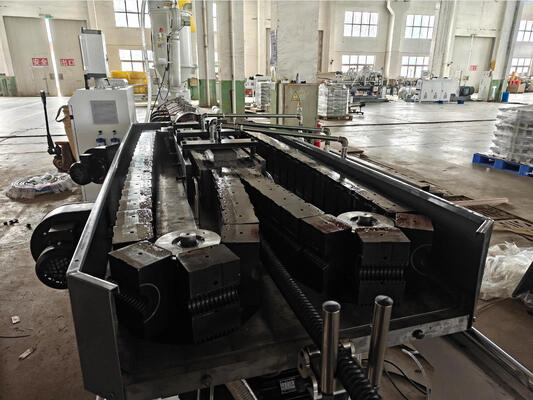

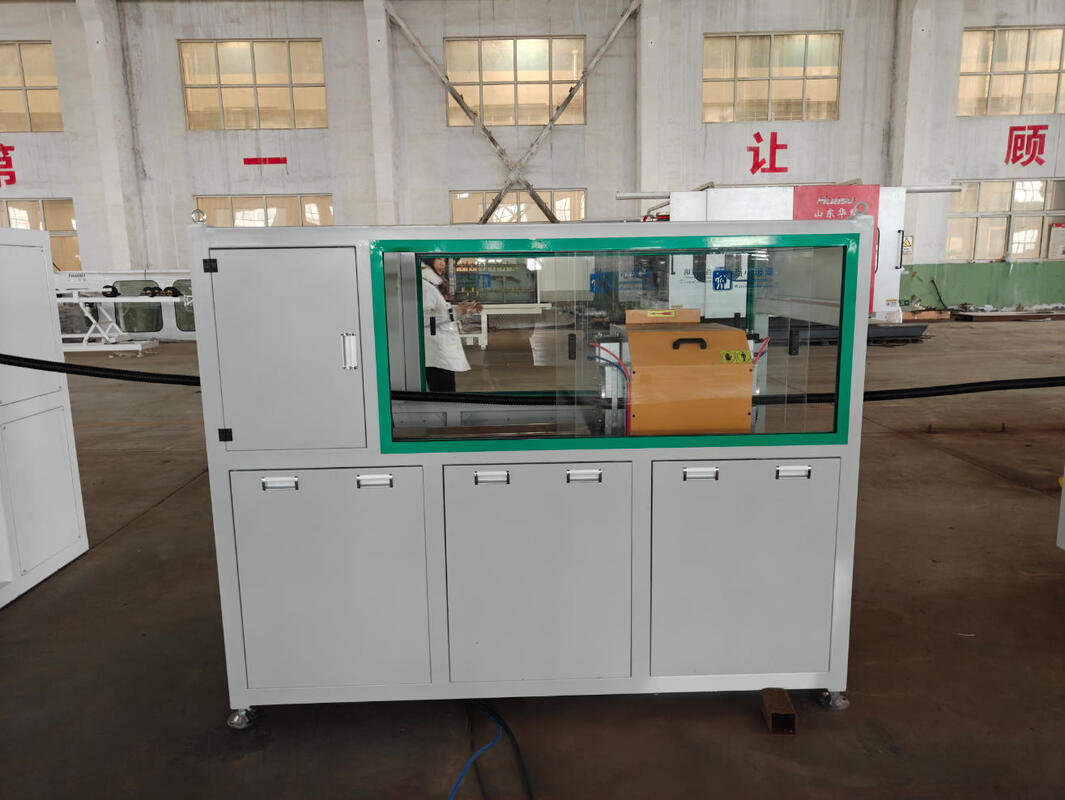

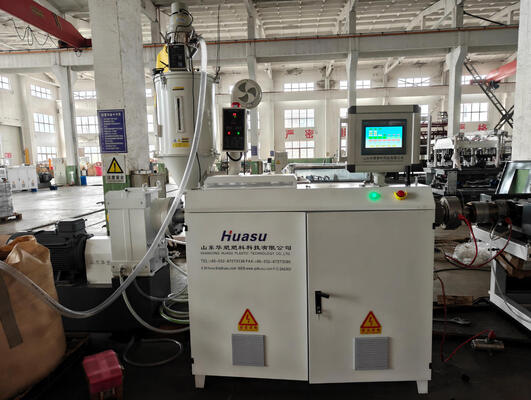

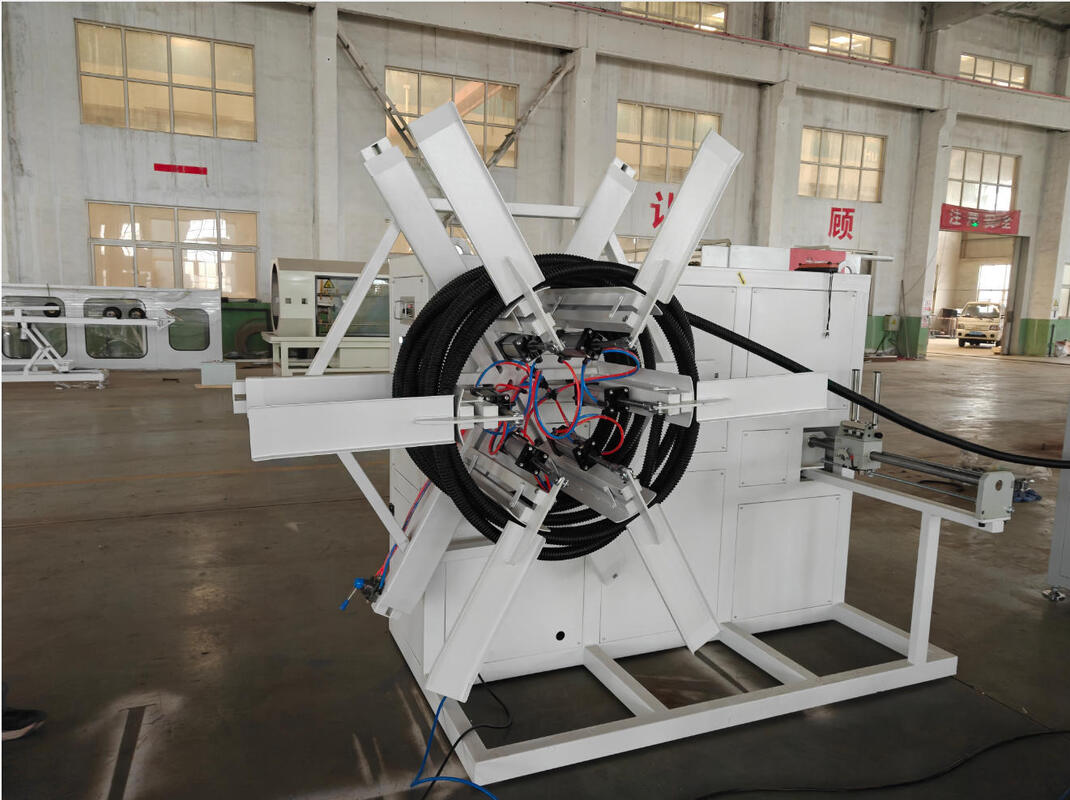

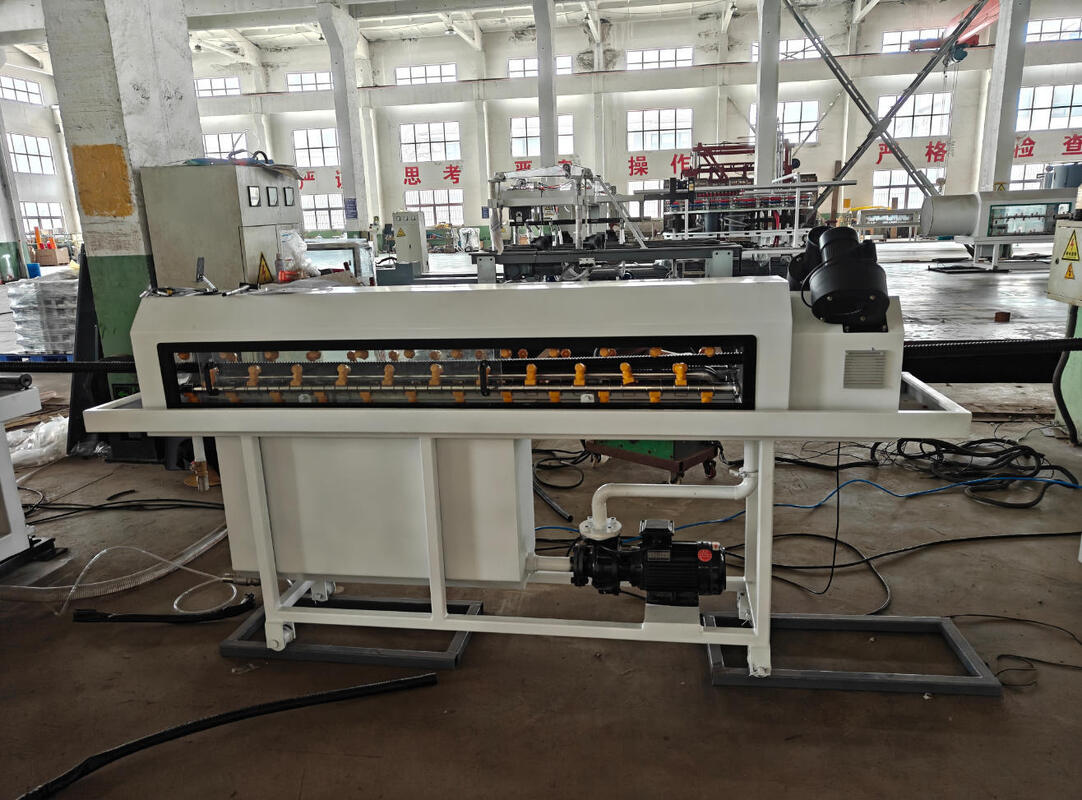

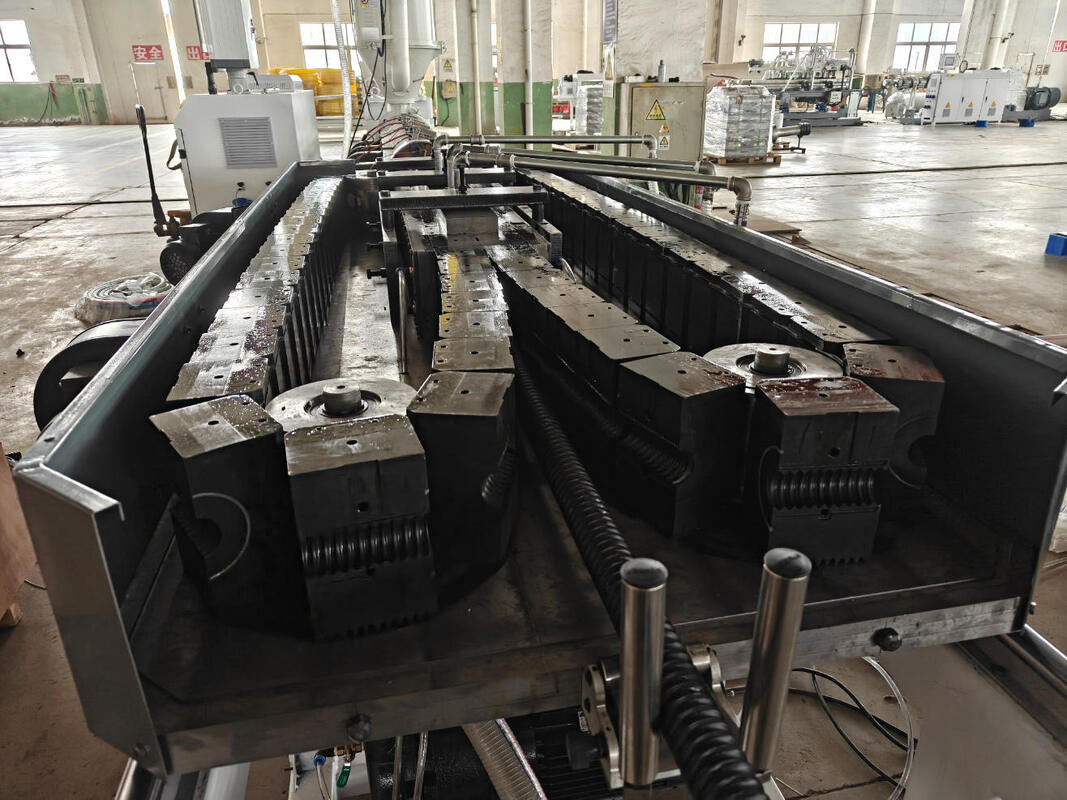

Full Automatic Single Wall Corrugated Pipe Extrusion Line with 40-80kg/h Output and Water Cooling System

  • Full Automatic Single Wall Corrugated Pipe Extrusion Line with 40-80kg/h Output and Water Cooling System
  • Full Automatic Single Wall Corrugated Pipe Extrusion Line with 40-80kg/h Output and Water Cooling System
  • Full Automatic Single Wall Corrugated Pipe Extrusion Line with 40-80kg/h Output and Water Cooling System
  • Full Automatic Single Wall Corrugated Pipe Extrusion Line with 40-80kg/h Output and Water Cooling System
  • Full Automatic Single Wall Corrugated Pipe Extrusion Line with 40-80kg/h Output and Water Cooling System
  • Full Automatic Single Wall Corrugated Pipe Extrusion Line with 40-80kg/h Output and Water Cooling System
  • Full Automatic Single Wall Corrugated Pipe Extrusion Line with 40-80kg/h Output and Water Cooling System
  • Full Automatic Single Wall Corrugated Pipe Extrusion Line with 40-80kg/h Output and Water Cooling System
Marca HUASU
Certificação CE, ISO
Packaging Details Container Standard Packaging
Delivery Time 60-90days
Payment Terms T/T,L/C
Supply Ability 100SET/year

Contacte-me para amostras e cupons grátis.

Whatsapp:0086 18588475571

WeChat: 0086 18588475571

Skype: sales10@aixton.com

Se tiver alguma preocupação, fornecemos ajuda online 24 horas por dia.

x
Detalhes do produto
Saída 40-80kg/h Motor Siemens
Tipo de marketing Produto comum Nota Automática Totalmente automático
Produção Estável e de alta velocidade Maneira de resfriar Resfriamento de água
Matéria-prima recomendada Novo material para PE, PP, PVC
Destacar

40-80kg/h Output Corrugated Pipe Production Line

,

Full Automatic Corrugated Pipe Extrusion Machine

,

Water Cooling Single Wall Corrugated Pipe Extrusion Line
Deixe um recado
Descrição de produto
HDPE PP PVC Single Wall Corrugated Pipe Extrusion Line
This advanced manufacturing system produces high-quality single wall corrugated pipes with full automatic control and industrial-grade output. Engineered with the latest technology, it meets the demanding requirements of construction, agriculture, drainage, and cable protection industries.
Key Features
Product Name: Single Wall Corrugated Pipe Extrusion Line
Mold Sizes: ID 75mm, 100mm, 125mm, 150mm
Output Capacity: 40-80 kg/h
Maximum Pipe Size: 110mm
Automation Level: Full Automatic
Cooling Method: Water Cooling
Technical Specifications
Parameter Specification
Marketing Type Ordinary Product
Motor Siemens
Output Capacity 40-80 kg/h
Automation Grade Full Automatic
Production Stable and High Speed
Recommended Materials New Material for PE, PP, PVC
Cooling Method Water Cooling
Available Molds ID63mm, 75mm, 90mm, 110mm
Maximum Pipe Size 110mm
Advanced Automation & Performance
The full automatic extrusion system integrates advanced automation technology to streamline the entire production process from raw material feeding to extrusion, cooling, corrugation, and cutting. This ensures consistent output and superior product quality with minimal human intervention, significantly reducing labor costs while improving precision and repeatability.
Water Cooling System
The efficient water cooling system stabilizes pipe dimensions and enhances surface finish by rapidly cooling extruded pipes. This technique improves mechanical properties, accelerates production speed, and maintains the integrity of the corrugated structure for durable, flexible final products.
Industrial Applications
This versatile extrusion line is ideal for producing PE single wall corrugated pipes used in electrical conduit production, drainage systems, cable protection, construction, agriculture, and telecommunications infrastructure.
CE Certified ISO Standard Manufacturing Excellence: Produced in China with 100 sets annual capacity and 60-90 days delivery time. Supports T/T and L/C payment terms with container standard packaging for secure worldwide shipping.
